Description
- Standard size contactors available in four frame sizes for devices rated from (AC-3) 9A-105A, directly interchangeable with other manufacturers.

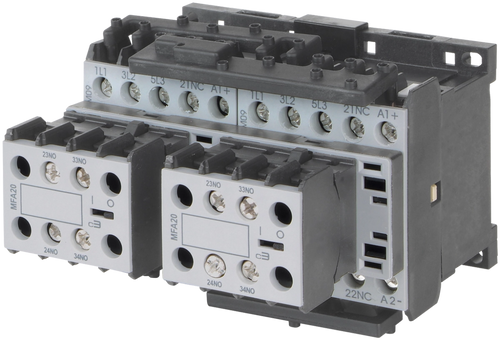

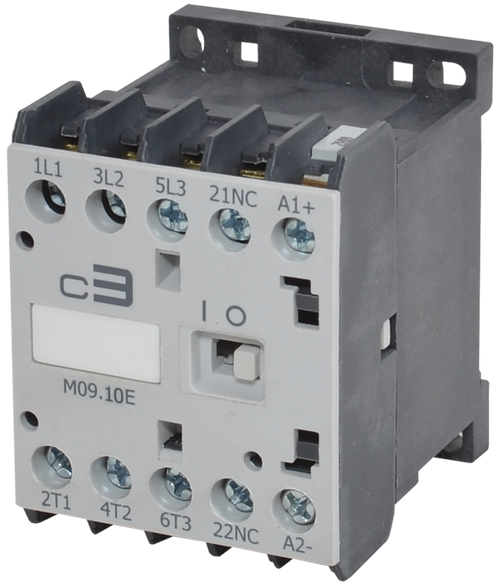

- Leading the industry with our compact miniature 10HP contactors. One frame size (7A-16A, AC or DC) – 28% reduction in panel area compared to standard devices.
- High fault short circuit current rating of 100kA@480V and 600V with Class J fuses.
- Integral auxiliary contacts, 3 power poles + 1 auxiliary, are standard on all c3 9A-25A standard contactors, and 1 NO or 1 NC on all c3 miniature contactors.
- Miniature contactors can be installed/mounted in multiple orientations, including upside down.
- Wide variety of AC and DC operating coils. Our 50A-105A DC operated devices feature electronic coil control.
- A printed circuit board link module is available and installs directly on the terminals of the miniature contactors enabling them to be direct mounted on an electronic printed circuit board.
- Modular design allows easy installation of Series 320 Overload Relays and the complete range of Series 330 Motor Protection Circuit Breakers and accessories.
